Egg Counter Maintenance Checklist

A missed count rarely starts with a major failure. More often, it starts with dust on the sensor face, a slight bracket movement, belt tracking that has drifted, or a cable connection that has worked loose over time. An effective egg counter maintenance checklist is therefore less about reacting to breakdowns and more about protecting count accuracy day after day under normal production conditions.

In commercial egg handling, the counter is only one part of the system. Accuracy depends on the condition of the belt, the stability of the mounting, the cleanliness of the sensing area, the power supply, and the way eggs present to the detection zone. If any one of those variables changes, counts can drift even when the unit itself is still powered and apparently operational.

Why an egg counter maintenance checklist matters

Egg counters are expected to work in environments that are not gentle. Dust, feather debris, temperature shifts, washdown practices, vibration, and continuous belt movement all affect long-term performance. In a high-throughput house, small count errors repeated across shifts can distort flock performance data, pack-out planning, labour allocation, and maintenance diagnostics elsewhere on the line.

A maintenance checklist creates consistency. It gives operators a clear routine, helps maintenance teams catch small faults before they become production issues, and makes troubleshooting faster when count discrepancies appear. It also reduces the common habit of adjusting settings or hardware too quickly when the actual problem sits upstream in the conveyor or mounting arrangement.

For two-dimensional infrared counters, the goal is straightforward: maintain a clean, stable and correctly aligned sensing path so each egg generates a reliable pulse output. That sounds simple, but field conditions make it worth checking methodically.

Daily checks for egg counter performance

The daily part of an egg counter maintenance checklist should be short enough to complete without disrupting line flow. If the routine is too long, it will not be followed. In most operations, the daily inspection is a visual and functional check carried out at start-up or during the first collection run.

Begin with the sensing area. Look for dust, dried residue, feather build-up or anything else that could interfere with the infrared path. Clean the sensor faces carefully using the method recommended for the unit. Aggressive wiping, unsuitable solvents, or scraping tools can create a different problem by damaging surfaces or leaving films behind.

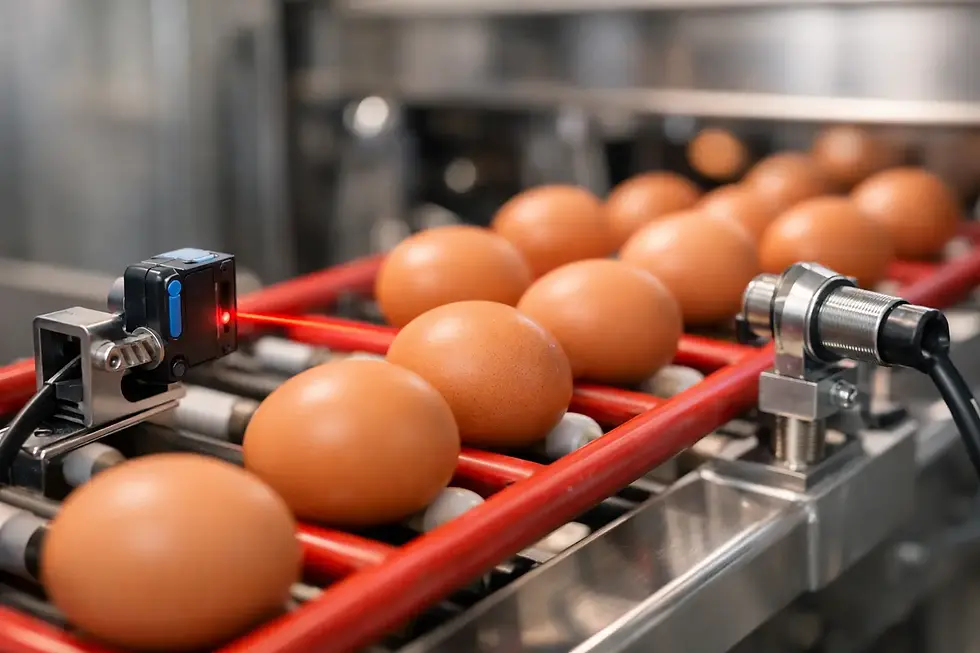

Then check the mounting. The counter body, brackets and any support hardware should be secure, with no visible movement or twist. Even minor movement matters because a counter that has shifted slightly from its intended position may still count, but not consistently across changing egg flow.

Observe egg presentation through the counting area. Eggs should pass through the sensing zone cleanly and in the manner the installation was designed for. If eggs are stacking, bouncing, riding side by side where they should not, or approaching at an angle due to belt drift, the counter may register irregularly. In that case, the root cause may be conveyor behaviour rather than the electronics.

Finally, confirm that count output is behaving normally in the receiving system. If the counter delivers per-egg pulse output to another device, compare observed egg flow against reported counts for a brief sample. You are not looking for a full calibration exercise every day, only for obvious mismatch.

Weekly inspection points that prevent drift

A weekly inspection should go further than a wipe-down. This is the point at which operators or maintenance leads check the hardware as a system rather than as a standalone device.

Cleanliness and sensor condition

Inspect sensor windows and surrounding housings more thoroughly than in the daily routine. Dirt that seems minor on day one can create gradual sensitivity issues by the end of the week, especially in dusty houses or on lines exposed to broken egg residue. Check not only the sensor face, but also nearby surfaces that may reflect contamination back into the sensing area.

Look for scratching, cracking, or clouding on exposed surfaces. If a component has been repeatedly cleaned with the wrong material, the problem may present as a counting fault before physical wear is noticed.

Mounting stability and alignment

Check all fixings, mounting brackets and adjustment points. Vibration from conveyors and nearby machinery can loosen fittings over time. Alignment should be reviewed against the original installation position, especially after any maintenance on the belt or support structure.

This is also the right time to check whether the belt width and counter model remain correctly matched in practice. In facilities that have made line changes, replaced rollers, or altered guide positions, the conveyor may no longer present eggs in the same path it did when the counter was first installed.

Cables and electrical connections

Inspect power and signal cables for abrasion, pinch points, moisture ingress or strain at connectors. Cable faults often produce intermittent count loss rather than a complete shutdown, which makes them easy to miss if the team only looks for total failure.

Pay close attention to junctions and terminal points. If the counter is integrated with farm management or packing systems, a sound sensor with a poor output connection can be mistaken for a counting problem.

Monthly checks for system reliability

Monthly maintenance is where a checklist should become more diagnostic. The aim is to confirm that the counter still performs to expected accuracy under real operating conditions and that no gradual mechanical changes have developed elsewhere on the line.

Sample count verification is useful here. Compare the counter output against a controlled batch or another trusted reference over a defined period. This should be done under normal belt speed and normal egg flow, not under idealised test conditions that the line never actually sees.

Review conveyor behaviour at the counting point. Check tracking, belt tension, vibration, roller condition and guide positioning. A counter can only count what is presented to it. If eggs are unstable at the sensing point, changing or cleaning the unit alone may not resolve the issue.

Inspect for environmental exposure as well. Moisture, washdown overspray, condensation, and dust sources near fans or transfer points can all shorten service life or affect repeatability. If the same contamination appears month after month, the better fix may be shielding, repositioning, or improved housekeeping rather than repeated cleaning.

Common faults and what to check first

When counts begin to drift, the first question should be whether the issue is constant or intermittent. A constant undercount may point to alignment, contamination, or egg presentation. An intermittent fault more often suggests cable movement, unstable power, loose hardware, or occasional belt behaviour such as bouncing or crowding.

If there is no output at all, confirm supply voltage and receiving equipment status before removing the counter. In production settings, the downstream input, connector block, or control panel can be the actual point of failure.

If overcounting appears, inspect for double presentation, vibration at the sensor point, reflective contamination, or mechanical conditions that cause one egg to be presented in an unstable path. If undercounting appears, look for blocked sensing paths, shifted mounting, weak electrical connections, or eggs moving outside the intended detection zone.

It depends on the line whether the main issue will be contamination or mechanics. In cleaner, enclosed systems, alignment and cable fatigue may be the larger risk. In open or dusty environments, routine cleaning discipline is often the deciding factor.

Building the checklist into routine farm practice

The best egg counter maintenance checklist is the one the team will actually use. That usually means separating operator checks from maintenance checks. Operators can handle visual condition, basic cleaning, and quick count confirmation. Maintenance staff should handle alignment review, electrical inspection, bracket integrity, and diagnostic testing.

Record faults in plain terms. Instead of noting that the counter was inaccurate, record whether the problem was undercounting, intermittent signal, no pulse output, visible contamination, loose mounting, or unstable egg flow. Specific records make repeat issues easier to track and reduce wasted time on guesswork.

It is also worth checking the checklist after any change to the conveyor line. Replacing a belt, adjusting guides, changing speed, or moving a support frame can alter how eggs enter the sensing area. The counter may not need service at all, but it may need its installation verified in relation to the new line geometry.

For production-grade equipment such as the Accucount range, long service life depends on straightforward habits done consistently. Clean sensing surfaces correctly, keep the mounting rigid, protect cables, verify egg presentation, and test output before a small discrepancy becomes a reporting problem.

A well-run layer operation does not wait for a counter to fail outright. It treats counting accuracy as a process condition, checks it with discipline, and keeps the line stable enough for the hardware to do its job properly.
